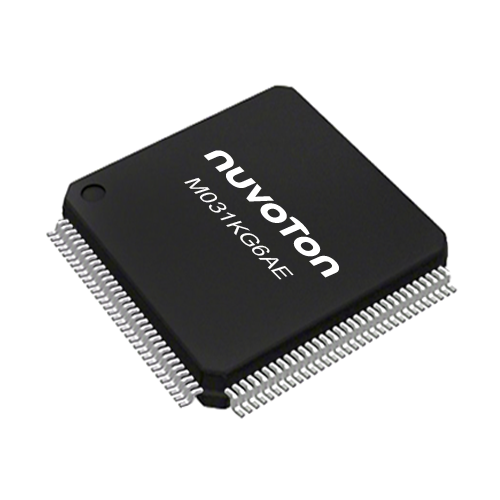

M031KG6AE

Nuvoton NuMicro M031KG6AE is low-voltage operation MCU based on Arm^®Cortex^®-M0 core with 32-bit hardware multiplier/divider. Operating frequency up to 72 MHz with 1.8V ~ 3.6V operating voltage, equipped 256 KB Flash and 32 KB SRAM .

With its special designed performance such as 2 MSPS ADC , 144 MHz PWM , 24 MHz SPI , 12 MHz UART . It can be applied at industrial control and consumer applications, provide a fast and precise data conversion of the voltage, current and sensor data, and fast response control for the external device, such as the current/voltage feedback from motor control or sensing devices.

M031KG6AE also provides plenty of peripherals included 2 set Universal Serial Control Interface ( USCI ) , 6 set UART , 1 set Q SPI , 1 set SPI /I²S, 2 set I²C , 16-ch 12-bit ADC , 24-ch 16-bit PWM etc. for various application demand. And it can operate over a wide temperature range as - 40 ℃ ~ + 105 ℃ . Pin to Pin is compatible in same package for full series

應用領域

• Laser Distance Meter
• Air Detector/Cleaner
• Mobile LCD Panel Controller
• Micro Printer
• Gaming Lighting

關鍵特性

• Operating Characteristics
  • Voltage range: 1.8 V to 3.6 V
  • Temperature range: - 40 ℃ to +105 ℃
  • EFT 4.4 kV
  • ESD HBM 6 kV
• Core
  • Arm^®Cortex^®-M0 processor running up to 72 MHz
  • 32-bit H/W multiplier/divider
• Memories
  • 256 KB Flash
  • 32 KB SRAM
  • 4 KB Flash for user program loader ( LDROM )
  • ISP / ICP / IAP programming
  • 2048 bytes SPROM ( Security Protection ROM )
• Clocks
  • 4 to 32 MHz HXT crystal oscillator or external input clock
  • 32.768 kHz LXT crystal oscillator or external input clock for low-power system operation
  • Internal 48 MHz HIRC oscillator with variation ± 2 % within all temperature range
  • Internal 38.4 kHz LIRC for Low-power operating mode
  • One PLL up to 144 MHz for high speed module operation
• Timers
  • Up to 4 32-bit timers
  • One 24-bit SysTick timer
• PWM
  • 24 channels 144 MHz 16-bit PWM
• Analog
  • 16 channels 12-bit 2 MSPS ADC
  • Two rail-to-rail comparators ( ACMP )
• PDMA
  • 7 channels PDMA
• CRC
  • CRC-CCITT, CRC-8, CRC-16 and CRC-32 polynomials
• Communication interfaces
  • 2-set of USCI interfaces that supports UART , SPI and I²C mode
  • 6-set of 12 MHz UART interfaces
  • 1-set of Q SPI interface
  • 1-set of 24 MHz SPI /I²S interface
  • 2-set of 1 MHz I²C interface
  • External Bus Interface ( EBI ) , supports 8-/16-bit data with maximum external address space of 1 MBytes
  • 111 GPIO ( except analog pins, Support 5V tolerant I/O )
• 96-bit Unique ID ( UID )
• 128-bit Unique Customer ID ( UCID )
• Package
  • LQFP128 14 x 14 mm

技術文件

• For more details and documents, please link to Nuvoton Official Website : GO
