NuTiny-NUC029SDE

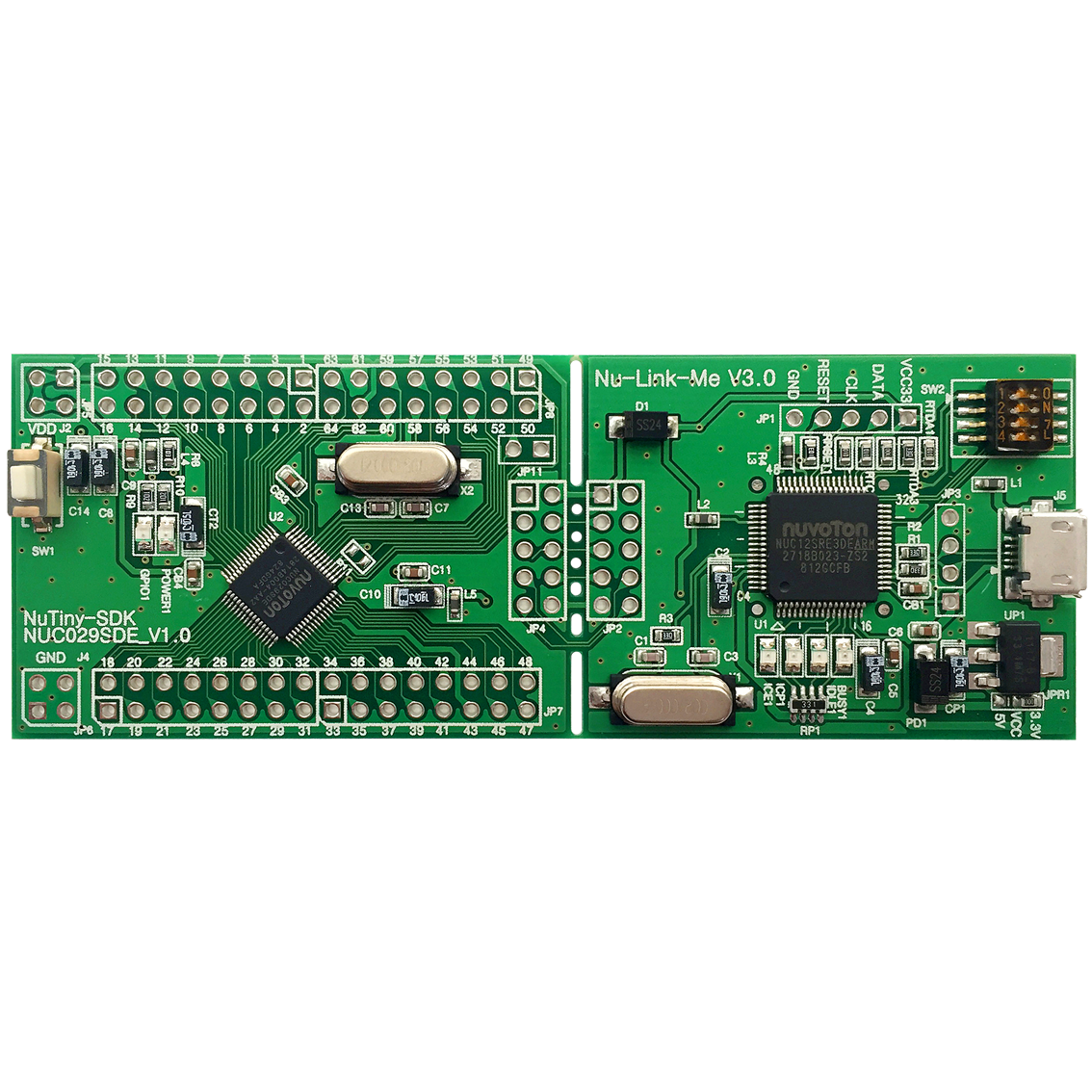

The NuTiny-SDK-NUC029SDE uses the NUC029SDE as the target microcontroller. Figure 2-1 is NuTiny-SDK-NUC029SDE for the NUC029SDE, the left portion is called NuTiny-EVBNUC029SDE and the right portion is Debug Adaptor called Nu-Link-Me. The NuTiny-EVB-NUC029SDE is similar to other development boards. Users can use it to develop and verify applications to emulate the real behavior. The on board chip covers NUC029SDE features. The NuTiny-EVB-NUC029SDE can be a real system controller to design user’s target systems. Nu-Link-Me is a Debug Adaptor. The Nu-Link-Me Debug Adaptor connects your PC's USB port to your target system (via Serial Wired Debug Port) and allows you to program and debug embedded programs on the target hardware. The Nu-Link-Me V3.0 also supports VCOM function, which gives users more flexibility when debugging.
